Privacy Slats
Privacy Slats
6
All information and images above come courtesy of Pexco Products

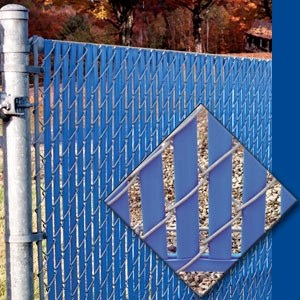

Bottom Lock
The Bottom-Lock slat provides an economical and attractive way to enhance any chain link fence.
Pexco is the largest manufacturer of Bottom- Lock, which are marketed under the PDS brand name. With over 25 years of experience extruding this product and an exclusive, patented, locking design, you can be assured of the highest standards in quality—from the raw materials used in manufacturing to the finished product in your fence. Ask about our 25-year warranty.
Design
Bottom-Lock Slats are flat tubular in shape, with reinforced "legs" inside for extra durability. Our patented, locking channel provides a "snap-in" locking effect for security and to deter vandalism.
Standard Heights
4,5,6,7,8,10 and 12 feet. Special heights available upon request.
Slat Length
3 1/2" shorter than overall height of fence.
Privacy Factor
Approximately 75%.

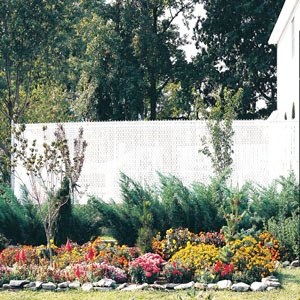

Top Lock
The Top-Lock Slat provides and economical and attractive way to enhance any chain link fence. Pexco is the largest manufacturer of Top-Lock Slats, which are marketed under the PDS® brand name. With over 25 years of experience extruding these products and an exclusive, patented, locking design, you are assured of the highest standards in quality - from the raw materials used in manufacturing to the finished product in your fence. This design utilizes a top-locking mechanism located near the top of the slats to ensure a clean, straight edge, further enhancing its appearance.
Design
Top-Locking Slats are flat and tubular in shape, with circular, notched-out holes located near the top of the slat.
Standard Heights
4, 5, 6, 7, 8, 10 and 12 feet.
Slat Length
2" shorter than overall height of fence.
Flexible, Top Locking Channel
Also available in a continuous 200 foot reel for larger jobs.
Privacy Factor
Approximately 75%

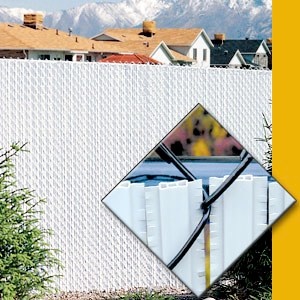

Winged Slat
When you need increased privacy, our Winged Slat® is the answer. With the proven quality and durability of our standard slats plus unique "wings" for extra screening and security, these slats are self-locking — no channels needed!
Design
Our unique patented design includes a rigid, flat-tubular body with "legs" inside for extra support. Flexible and resilient wing portions are positioned on each side of the slat body. Serrations are added to the wings for easier installation and locking power.
Standard Heights
4, 5, 6, 7 and 8 feet. For heights exceeding 7 feet, we recommend using (2) two half sizes (i.e. for 10 ft. fence use two 5ft. slats) this will help during installation and will not lessen privacy.
Slat Length
2" shorter than overall height of fence.
Privacy Factor
Approximately 90%. (Based on wire/mesh used-stretch tension).
NOTE:
Additional time should be allowed for installation.

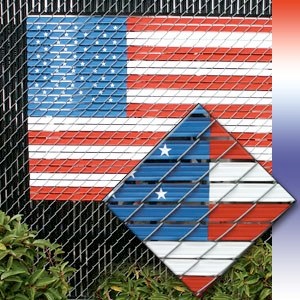

American Flag Kit
Show your pride in America. There's no better way than to show your colors permanently by posting the American Flag Kit.
The American Flag Kit can be installed easily in most chain link fences. It's a great way to display the stars and stripes at home, school, church, or the office; wherever there's a chain link fence. The possibilities are endless. So go ahead and make a statement. Show your pride in the good old USA. It's easy with an American Flag Kit from PDS® Fence Products.
Design
High quality (HDPE) plastic with UV stabilizers.
Finished Size
When installed, the flag is 4' x 6' wide.
Mesh Sizes
2" (recommended to minimize spaces between slats.)
Wire Size
11 & 9 gauge.
Click on image to download .PDF brochure
Click on image to download .PDF brochure
Click on image to download .PDF brochure
Click on image to download .PDF brochure

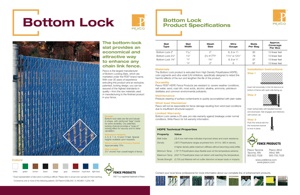

Bottom Lock - Privacy Slat Brochure

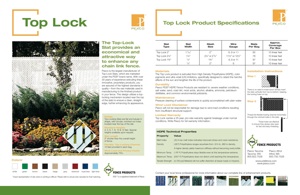

Top Lock - Privacy Slat Brochure

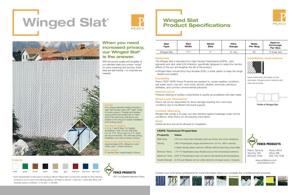

Winged Slat - Privacy Slat Brochure

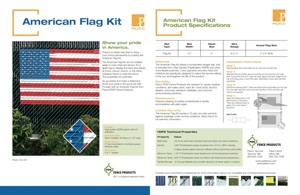

American Flag Kit - Privacy Slat Brochure
