Capitol Wholesale Fence sells a wide variety of fence industry related tools. From Little Beaver branded auger equipment to professional hog ring pliers, Capitol’s tool section caters to all fence installers.

Malco Hog Ring Pliers 9-Gauge

- Uninterrupted hog ring feed.

- Long handles for extra leverage and reach.

- Easy access to tension wire and fence.

- Magazine folds down for tool storage.

- Use with HRA5 Aluminum Rings or HRS5 Steel Rings

- U.S. Patent Pending

Commercial grade Hog Ring Pliers with Magazine  installs 9-Ga. (3.8 mm) collated aluminum rings or exclusive 9-Ga. (3.8 mm) collated steel rings.  Easily secures 7-Ga. (4.5 mm) wire to 9-Ga. (3.8 mm) chain link fence.

Designed to address the most stringent regulatory codes, this commercial grade hog ring pliers ensures uninterrupted operation to quickly install extra secure Malco 9 Ga. (3.8 mm) collated aluminum rings or exclusive 9 Ga. (3.8 mm) collated steel rings anywhere along a chain link fence.  Long handles save time and effort with plenty of leverage and reach.  The 25-count strips of collated rings can be loaded into the pliers’ symmetrical magazine from either direction.  A plunger feed automatically sets up each ring.  There is no need to manually rotate the magazine out of the way as the pliers’ clinching mechanism brings the ring forward of the nose for easy access to tension wire and fence.  The magazine easily folds down for safe and easy storage of tool.

FAQs

Can Malco’s hog rings be used in other hog ring pliers?

No, Malco’s collated HRA5 aluminum and HRS5 steel hog rings for attaching tension wire to chain link fencing are designed specifically to be used only in Malco’s HRP5 Hog Ring Pliers.

Can other hog rings be used in Malco’s HRP5 Hog Ring Pliers?

No, Malco’s collated HRA5 aluminum and HRS5 steel hog rings for attaching tension wire to chain link fencing are designed specifically to be used only in Malco’s HRP5 Hog Ring Pliers. We do not know of any other hog rings that can be used in Malco’s HRP5.

Do HRA5 and HRS5 hog rings meet government requirements?

Yes, Malco’s hog rings are manufactured with “true” 9 gauge hog ring wire diameter measuring at .148 inches. Many hog rings are marketed as 9-gauge however, they are not manufactured with a full .148 wire diameter.  Malco’s steel hog rings have a Class 3 coating in accordance with ASTM A641 and Malco’s aluminum hog rings are made from aluminum alloy 6061-T94 or 5052-H38.

What is unique about the hog ring design?

Malco has a patent pending on our hog ring design. The overlap clinching creates a more secure connection than a standard side-by-side clinch.

What is the common spacing used when installing the tension wire?

Hog rings are attached tension wire to chain link fencing at a spacing of 12” to 24” mostly commonly every 24”.  One box of Malco collated hog rings will secure a 1000’ bale of tension wire to the chain link fence spaced at 24” intervals.

Are there replacement parts available?

No, we have heat treated all of the functional components to give the tool a long life; it also eliminates the need to offer replacement parts

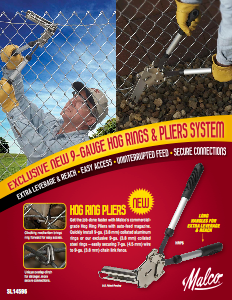

Click on image to download .PDF brochure

Malco 9 GA Hog Ring Pliers Brochure
